New River Village II

Overview

Archaeologists affiliated with the St. Kitts-Nevis Digital Archaeology Initiative (SKNDAI) began work at the site of the New River estate’s slave village in May 2008. Twenty shovel-test-pits were excavated at the New River II village in July. In addition, total stations and GPS units were used to digitally map the landscape and extant structures related to the estate, which was established in the mid-1700s and was occupied through emancipation in 1834. Instrumental Neutron Activation Analysis (INAA) and petrography was conducted on a sample of the Afro-Caribbean ceramics from this village. Preliminary analysis on the archaeological data from New River I and New River II suggest that enslaved people lived at New River I from about 1750 until 1780, when the village was moved to the area identified as New River II. New River II was occupied from 1800-1830.

The shovel-test-pit surveys at New River are part of an international collaborative fieldwork project in the Caribbean known as The St. Kitts-Nevis Digital Archaeology Initiative. The Initiative was funded by a JISC-NEH Transatlantic Digitization Grant to The Digital Archaeological Archive of Comparative Slavery (DAACS), Monticello, The University of Southampton, and the International Slavery Museum, Liverpool.

The New River villages are also a key component of a multiple-year research program in the Caribbean spearheaded by DAACS, known as the DAACS Caribbean Initiative (DCI). DCI’s immediate goal is to document archaeologically, through survey, excavation and collections analysis, the trajectories of change in slave lifeways on the north and south coasts of Jamaica and on the small islands of Nevis and St. Kitts during the 17th and 18th centuries. DCI’s ultimate goal is to improve our understanding of the causal forces that shaped the evolution of slave societies throughout the early-modern Atlantic world by giving researchers access to easily searchable and comparable data from archaeological sites throughout the Atlantic World.

Documentary evidence

The first known mention of the New River plantation was in 1724 when William Earle, planter, conveyed the plantation to Thomas Butler, a merchant formerly of Nevis but who then resided in Great Britain. It was then the New River plantation in the parish of St James, c.50 acres, bounded on the NE with the sea, on the SW with the lands of William Earle and Charles Williams, to the NE with lands belonging to Elizabeth Hill, Charles Williams and the lands formerly of John Wilkinson, and to the SE with the land of Robert Easter (Common Records 1707-1728, fols.553-4).

Owner	White Men	White Women	White Children	Enslaved Men	Enslaved Women	Enslaved Children
Capt. Edward Earle	3	3	4	7	14	10
Mr. Roger Earle	4	2	4	9	8	9
Samuel Earle	2	1	3	2	1	–

The origin of the name ‘New River’ has not been established. Possibly there was in ownership, family, investment, or some other association, a link with the New River Company established in the early-17th century to provide a new water supply to London. The naming of a nearby gutt as ‘New River Gutt’ need not mean that this was a new watercourse named as ‘New River’. The gutt might simply be named after the plantation. By 1739 Thomas Butler, gent., was of Camberwell, Surrey, a suburb of London on the south bank of the Thames. In his will of that year all his plantations and slaves on Nevis were left to his three sons, John, James and Duke Butler (Oliver 1912:60). John Butler was later linked by marriage to the families of Pemberton and Maynard, the latter subsequently the owners of New River. In 1745 the three sons, John, James and Duke, sold or mortgaged an estate in the parish of St. James, probably New River, to William Clarke of Camberwell esq. and John Hooke of Portsmouth in Hampshire (Oliver 1912:63). By 1785 the one third share of the estate of Duke Butler, the minister of Okeford Fitzpaine in Dorset, had descended to his children, Thomas, James, William, Mary the wife of George Ryves Hawker and Jane the wife of Robert Frome, who then sold their share to Thomas Coxhead, a merchant of Great Hermitage Street, St George’s, Middlesex, by then part of the west end of London (Common Records 1788-9, 121-154; the conveyance gives a full list of the slaves included in the sale).

By 1763 three plantations of Josiah Webbe, possibly part of the former Butler lands, made up an estate also known as New River, abutting together, bounded on the NE with land of John Butler and the sea, on the SE with land of John Coram esq. (see Coconut Walk, below), on the N with land of John Hobson decd., on the SW with ‘the New River and the New River Gutt’ (Common Records 1761-4, fol.71). By 1765 the estate was owned by Walter Nisbett and William Maynard esqs., having once been the property of the late Josiah Webbe of New River esq. (Common Records 1764-7, fol.167). A map of the late-eighteenth or early-nineteenth century shows the southern boundary of the estate as the New River ghut, the boundary between the parishes of St James and St George. The estate contained by this date c. 267 acres (Suffolk Record Office HA178/1/55). These were probably the lands that belonged by the early-nineteenth century to the Maynard family of Suffolk (Suffolk Record Office HA178, which includes plans of three separate estates). In 1765, one of these three estates adjoining New River was probably the plantation known today as Coconut Walk. In 1765 it was owned by John Lytton Coram esq., and occupied c. 250 acres in the parishes of St. George and St. James (Common Records 1764-7, fol.167). Coconut Walk is delineated and shown as c. 250 acres on a map copied from an older original in 1860 (Suffolk Record Office HA178/1/56). The 1785 conveyance lists the names and general ages of each individual owned by New River. That year 21 men, 46 women, 34 boys, and 28 girls labored at the estate. The total slave population was 129 ‘negroes or slaves’. Several names are embedded with clues to a person’s ethnicity, age, origin or parentage. In these cases, two names are provided for a single individual, one proper name and one descriptor. For example, three men carried names that allude to their ethnicity, Indian Robin, Africa Lawrey and Cubenna Billey.

No men or women had occupations linked to their names but two women carried names suggestive of their origins in Africa or the creolized Caribbean. These women included ‘Ebbo Frankey’ and ‘Mulatto Rittah’. ‘Old Juggy’ and ‘Old Betty’ were most likely amongst the oldest enslaved women on the property. Children’s names such as ‘Young Juggy’ and ‘Little Abba’ may also provide clues to parentage and family structure at New River Plantation. One boy and one girl had names indicating they had been born on or purchased from another plantation. ‘Tom Maden’ and ‘Maria Maden’ were both probably connected in such a way to Madan’s Plantation a few miles to the north of New River in the same parish of St James.

Walter Maynard’s will, made in 1804, noted that he had expended “large sums on New River Estate, now belonging to Messrs. Lane, Son, & Fraser, under a promise … that he should become the purchaser, and … have contracted, or are about to contract, with … [his] son Walter Maynard for sale of such estate, he directs that should the sale be completed on terms in contemplation, son Walter shall have no share in the Gingerland Estate” (Oliver 1913:340). It is possible that the “large sums” expended on the New River estate related to activities to increase sugar production, as evidenced in the movement of the slave village in the late-18th century as well as investment in new sugar processing technology, such as a steam mill.

Excavation history, procedure and methods

The New River estate is located in the Atlantic side of Nevis. The site of its 18th-century slave village was known from documents. In 2006, with a copy of the late-18th-century play in hand, Neiman, Galle and Leech conducted a brief walkover survey of the area identified on the plat as the New River slave village. A dense surface scatter of ceramics dating from the mid-18th through early 19th-centuries provided convincing evidence that we had located the village. This area was the location of New River I, an 18th-century village dating from 1750-1780.

In May 2008, with funding from JISC-NEH, we returned to the estate to begin surveying New River I. We surface surveyed an area south and across a steep gut from the early village. We soon encountered scatters of 19th-century artifacts, as well as the remains of a stone cistern and a stone building, possibly an overseer’s house. Stone field terraces stretched to the west. We did not collect artifacts.

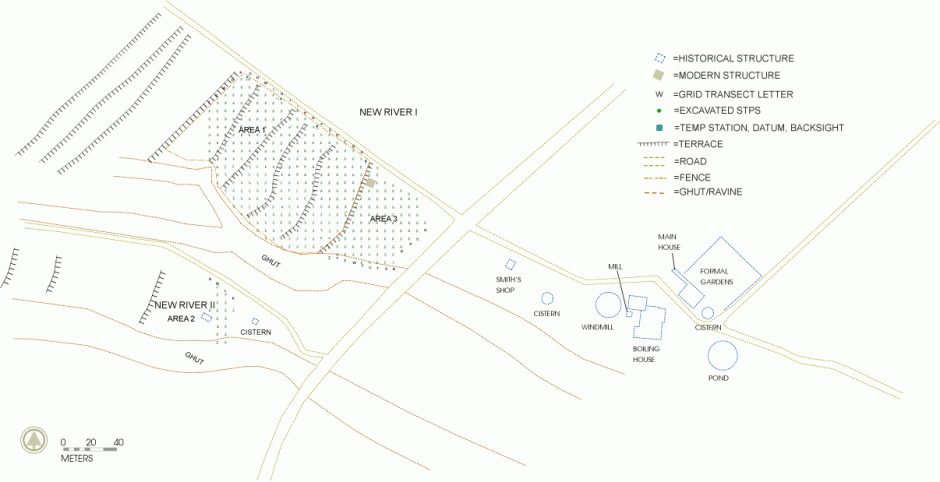

At the end of the survey season in July 2008, SKNDAI staff excavated 17 pits between the cistern and stone house foundation at New River II. They also mapped the location of the cistern, historic structure, and terraces using a total station. This area is covered in light shrubbery and is currently used by the Nevis’s Department of Agriculture as an informal apiary.

We used a total station and GPS to place a UTM grid across the site. All shovel-test-pits were placed on 6-meter centers using a total station. An alphanumeric system was established for naming STPs that combined the Area, the Transect Letter, and the STP number. Transects were labeled alphabetically across the site. STPs were numbered consecutively within each transect. As a result, STP context numbers follow this format: 2-L-03, which translates into Pit 3, on Transect L, in Area 2.

All STPs were 50 centimeters in diameter and all excavated sediment was screened through 1/4 inch mesh. In most cases, the pits were excavated to subsoil. All recovered artifacts were washed and flown to the DAACS lab at Monticello, where they were cataloged to DAACS standards. The artifacts will be returned to Nevis in 2010.

Summary of research and analysis

This section briefly outlines results from DAACS’s preliminary analysis of archaeological data recovered from the New River village sites in 2008. It includes some comparative data from the villages at the Jessups Estate, also on Nevis. The analysis is intended only to evaluate the analytical potential of the data and thereby the utility of the field research and digitization design that we have employed. We cannot hope to exhaust that potential here.

Our initial research has focused on dating the site. We show that is it possible to accurately pinpoint the beginning and ending dates of each settlement and chart change in the intensity and location of occupation within settlements over time. With dates in hand, we then assess the extent to which it is possible to chart change over the course of the village occupations in the frequency of an artifact class that is a major focus of the project: Afro-Caribbean ware.

Our chronology relies on frequency seriation. The seriation method assumes that the relative frequencies of types, in our case ceramic ware types, in a suite of temporally successive assemblages follow lenticular or Gaussian curves. If this is right, then an ordering of undated assemblages in which type frequencies display this pattern is likely to be a chronology (Dunnell 1970). We rely on two complementary methods to estimate order: correspondence analysis (CA) and mean ceramic dates (MCDs) (Ramenofsky, Neiman and Pierce 2009, Smith and Neiman 2007). CA converts a data matrix of type frequencies into a set on scores which estimate the positions of the assemblages on underlying axes or dimension of variation. MCD’s are weighted averages of the historically documented manufacturing date for each ware type found in an assemblage, where the weights are the relative frequencies of the types. Measuring the correlation between CA axis scores and MCDs offer an indication of whether the CA scores capture time (Ramenofsky, Neiman and Peirce 2009).

Because artifact samples from individual STPs are small, a large proportion of variation among assemblages is the result of sampling error, which obscures any meaningful pattern. To reduce sampling error, we rely on empirical-Bayes smoothing methods (Robertson 1999). Once the ceramic assemblages from each STP were fit into a single chronological framework, we used regression splines to extract the trajectory of change in AC ware.

Our survey team excavated a total of 383 STPs at this site (New River I), covering all of its documented spatial extent. In addition, the team discovered the location of a second, later slave village site through surface reconnaissance (New River II). Seventeen STPs were excavated at New River II, to allow a preliminary assessment of its age. Complete exploration of New River II awaits additional funding.

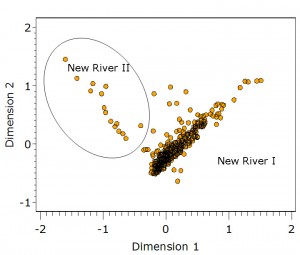

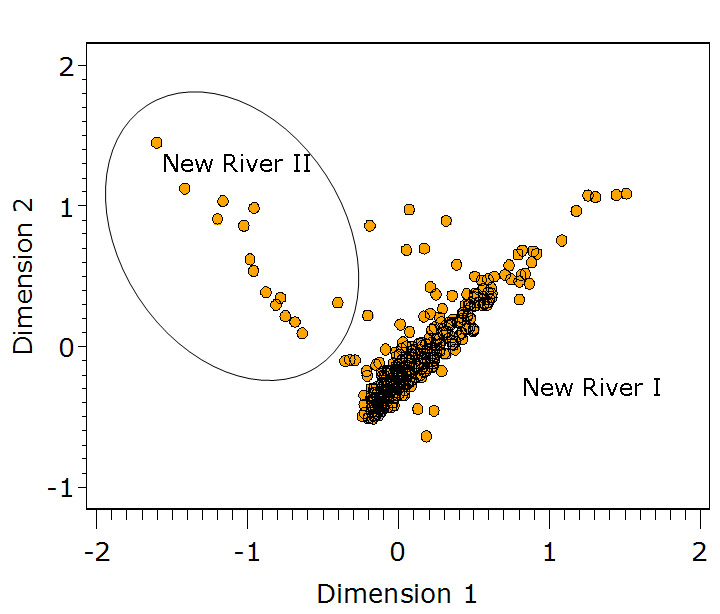

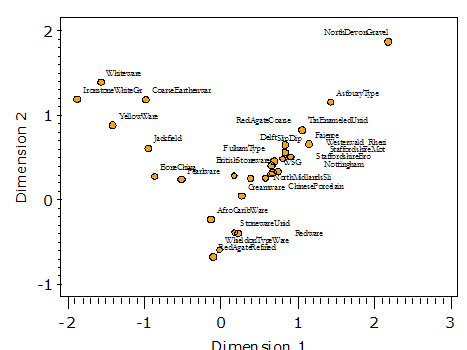

CA of Bayes-smoothed ware type frequencies from the New River I site fits the seriation model well: a plot of the 383 STP assemblages on the first two CA axes assume the characteristic U-shape that betrays good fit to the seriation model (Figure 1). The complementary plot of the ware types in the same space shows that the earlier assemblages lie on the right of the plot, and the later ones are on the left (Figure 2). This is confirmed by plotting the MCDs for each assemblage against their CA axis-1 scores (Figure 3).

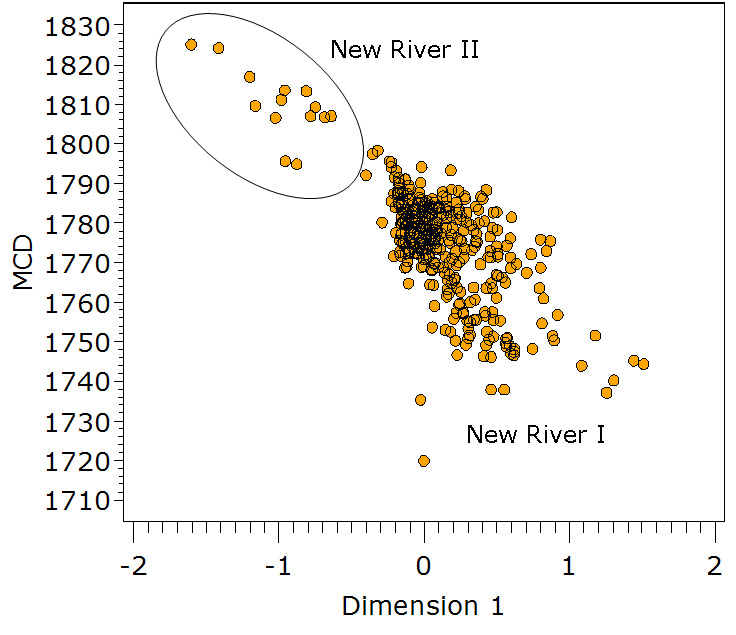

The MCDs indicate that the New River I village was occupied from about 1750 until 1780. The occupation span for New River II runs from about 1800 to 1830. This implies that the site was abandoned at emancipation. The gap between these two spans is small, and may be the expected outcome of the time-averaged character of the assemblages. Clarification of this point requires larger samples from New River II. We tentatively conclude that New River II was occupied when New River I was abandoned and that there was a single massive shift of slave housing from one site to the other.

What caused this shift? We are currently exploring several hypotheses. The first is that the change was implemented by New River’s owners as part of a larger strategy to increase the efficiency and scale of sugar production. Archaeology shows the terraces that traverse the old village site post date the slave occupation. This implies the area was put into cultivation after it was abandoned. The location of these new sugar fields adjacent to the mill and boiling house complex minimized the costs of transporting sugar to them. The new village location was more distant from the mill complex. Hence growing cane on the old village site was more efficient that growing it on the new village site.

The move may have had an unintended benefit for enslaved people because it placed them closer to a deeply eroded drainage or ghut that may have been a water source. Access to water became even less onerous with the construction of a cut-stone cistern for water storage on the site at some point during the occupation. This facility represents a considerable investment by New River’s owners. However, why they made it is not clear. One possibility is an increased concern for the wellbeing of enslaved workers, perhaps linked to the end of the slave trade in 1807. A second hypothesis is ecological: the ghut adjacent to the new village only contains water today during storms. Its dry condition may date to the early 19th century.

A second major focus of research is the role that Afro-Caribbean wares played in the lives of enslaved people on Nevis and St Kitts. These ceramics are hand made and open-fired. They were likely produced on the household level by enslaved women. The 2008 research included neutron-activation analysis and petrographic studies designed to rigorously evaluate this hypothesis. Data from these tests will be available through DAACS in September 2009.

Afro-Caribbean wares relate directly to two of the larger themes that motivate our research. First, archaeologists have often assumed that these ceramics are evidence for the conservation of African potting traditions in the Caribbean. However, an equally plausible hypothesis is that Afro Caribbean ceramics represent a strategic reinvention of African traditions to meet challenges that were unique to life on Nevis under slavery. If these ceramics primarily represent continuity in African cultural practice, we would expect their frequency, relative to imported, specialist-produced ceramics, to decline with the passage of time.

The second question is when and if slaves on Nevis acquired the motive and means to participate in the consumer revolution, in this case by replacing household-produced pottery with European ceramics whose acquisition required cash (Carson 2003; Galle 2010; Neiman 2005). The seriation chronology developed above offers an opportunity to shed light on both these issues at New River.

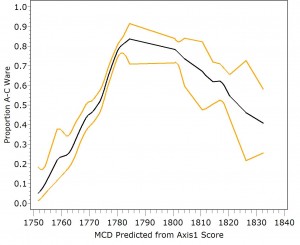

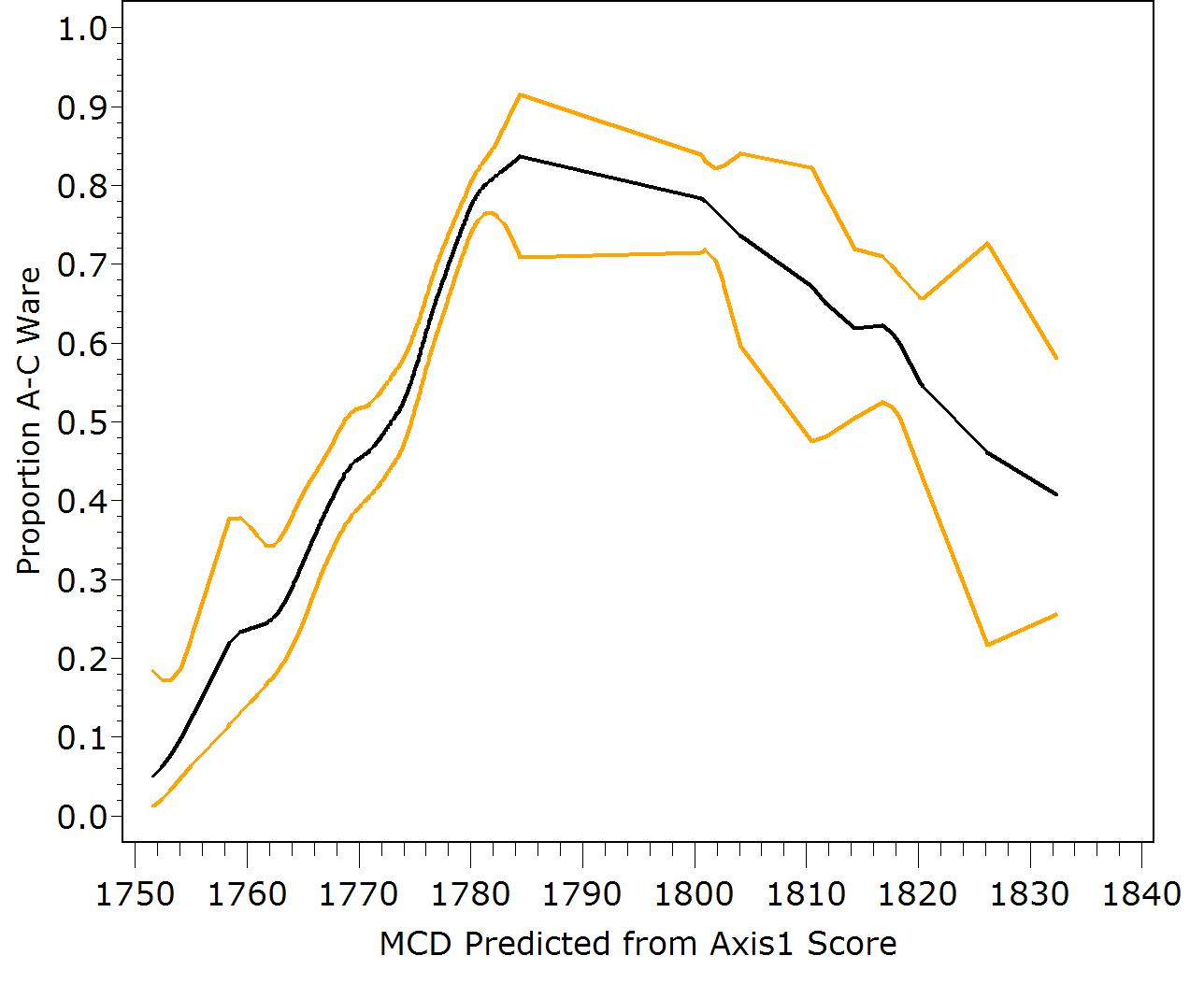

We plotted the proportion of Afro-Caribbean ware in each STP against the CA axis-1 scores, which we know capture time. In order to put the result on a calendar year scale, we regressed the MCDs on the Axis 1 scores. We use the predicted MCDs to preserve the statistically desirable properties of the CA scores while re-expressing them on a rough calendar year scale. The final step is to fit a regression spline with binomial errors to the AC-Ware proportions. The fitted curve is plotted against the predicted MCDs in Exhibit 4.

The trend is astonishingly clear. Afro-Caribbean ceramics comprise a minority of the New River ceramic assemblages until the 1770’s. Their popularity peaks in the 1780’s and then declines until emancipation. The first half of the trend supports the idea that A-C wares are an adaptive response to conditions that enslaved Africans encountered at New River, although they may have drawn on traditional African knowledge about ceramic production. The fact that the frequency peak occurs around 1780 hints that one salient environmental factor may have been the American Revolution, which sharply curtailed shipping from Europe, Africa, and North America into the Caribbean. During this period the importation of provisions, slaves and goods into the Caribbean slowed to a trickle (O’Shaughnessy 2000).

The post-1780 decline in Afro-Caribbean wares may be linked not only to resumed importation of ceramics from England but also, perhaps after 1800, to an increase in the effort that enslaved people put into acquiring fancy ceramics. Disentangling these two factors requires larger samples of ceramics from the later village, which will make it possible to resolve whether there really are two inflection points in the downward curve, suggesting two causes.
